Float Ball with Higher Pressure

Introduction of Float Ball with higher pressure ---50*52*15.5

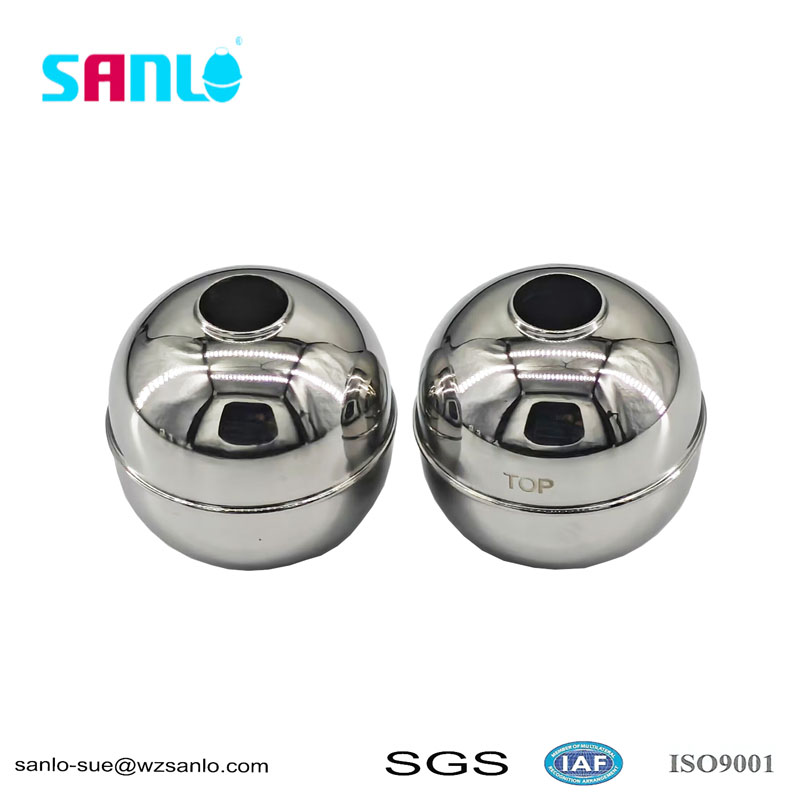

Float Ball ---50*52*15.5 This product is similar to the previous 50*52*15.5 normal type , This 50 * 52 * 15.5 is actually an upgraded version of our regular 50 * 52 * 15.5. Our regular 52 * 50 * 15.5 standard pressure is 2.5MPA, while the upgraded 52 * 50 * 15.5 is based on the customer's high pressure requirements, with an R-angle added to the regular spherical surface to increase the load-bearing area and compressive capacity of the floating ball. The maximum pressure can reach 8.4MPA, and our testing pressure also reaches 6.4MPA, which meets the customer's high pressure requirements. In addition, according to the customer's requirements, we have laser engraved the word 'TOP' and marked the direction of the magnet.

Production equipment：

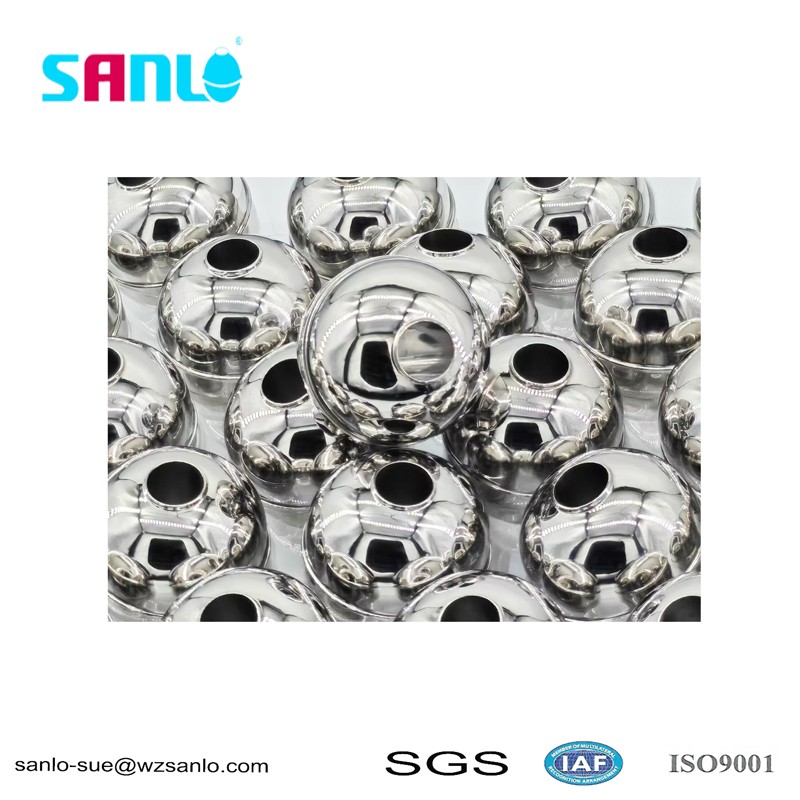

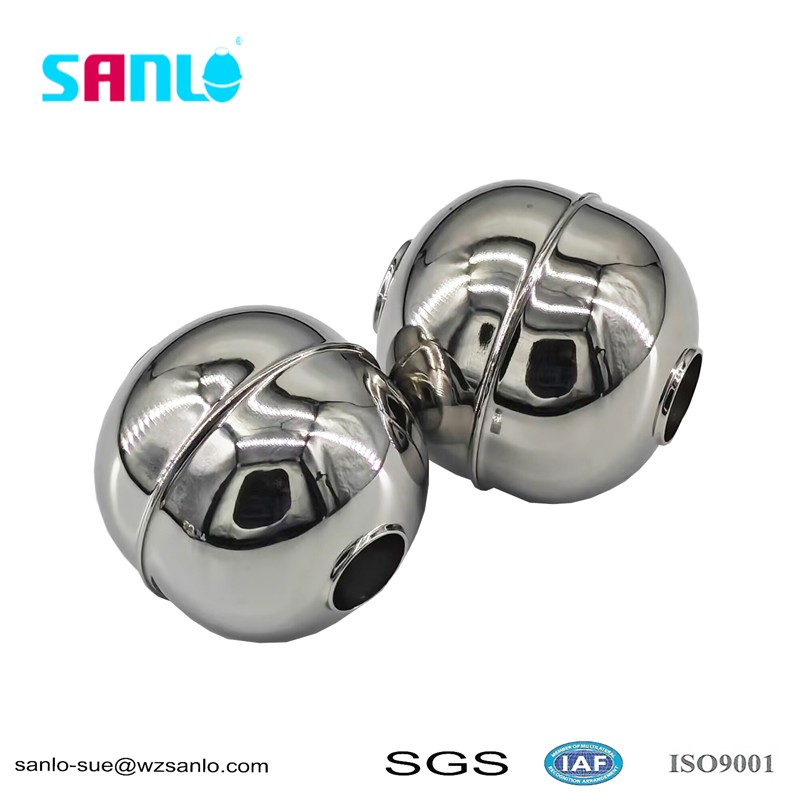

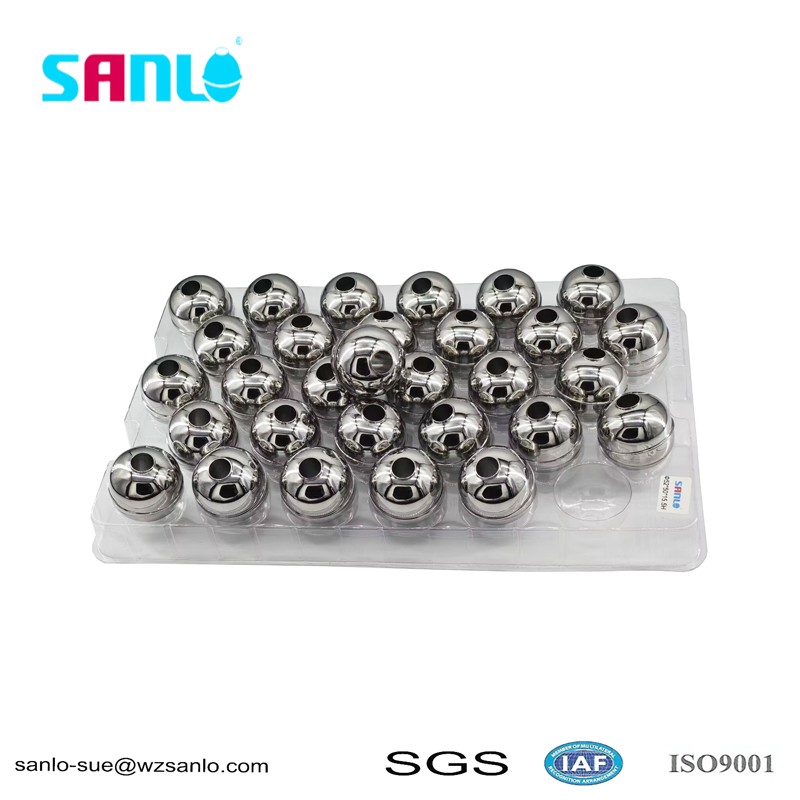

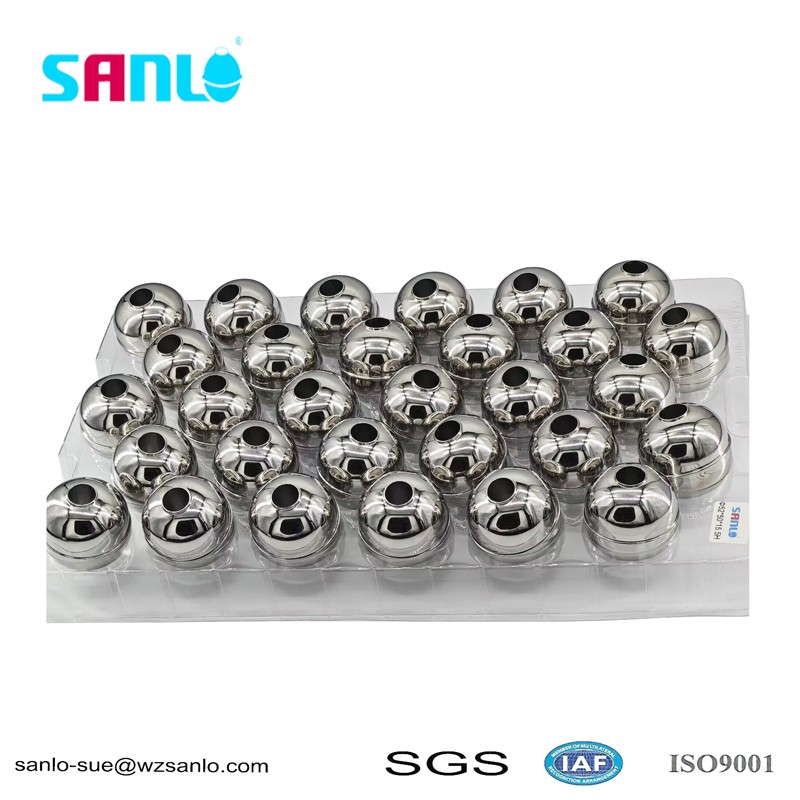

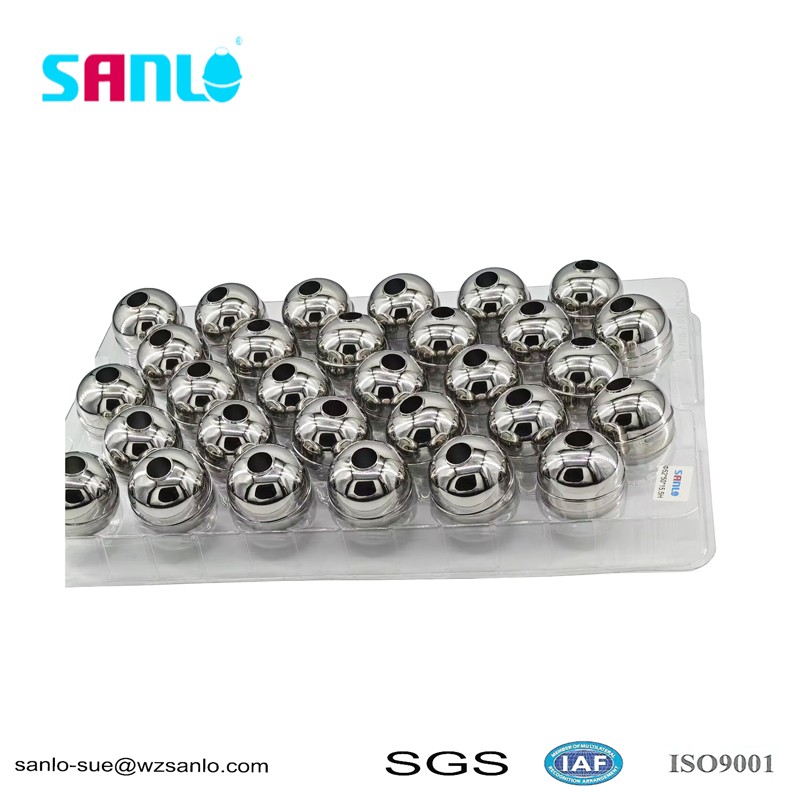

Physical photos：

Feature And Application of higher pressure float ball ---50*52*15.5

higher pressure float ball --50*52*15.5 it is working in level switch /Level Gauge /Level Gauge magnetic flap .It helps the liquid level gauge achieve water level control balance. When the magnetic levitation ball floats up and down along the pipeline with changes in the liquid level, the magnetic steel inside the levitation ball attracts the reed tube at the corresponding position in the sensor, causing a change in the total resistance (or voltage) of the sensor. Then, the transmitter converts the changed resistance (or voltage) signal into a 4-20mA current signal output. Our XMT series digital control instrument (or DSB type optical column digital display instrument) can be selected to measure the liquid level remotely, and upper and lower limit alarms can be set on the display instrument to achieve positional control of the liquid level. Alternatively, other regulators can form a liquid level constant value adjustment system to achieve continuous PID adjustment of the liquid level.At the same time, our high-pressure model can be used under high pressure conditions to meet customers' pressure requirements for floating balls.

How to customize a floating ball from Sanlo

1. Contact Sanlo sales and explain the needs.

2. Samples or drawings can be provided to Sanlo sales, and sales will ask engineers to analyze whether production is possible, or we can provide a feasible solution after analysis and communicate with customers

After confirming the production drawings, prices, and delivery time, the customer will arrange to pay a deposit.

4. Sanlo sent samples to the customer for confirmation. The customer confirmed and the order was officially produced
