Steel Float Ball for Level Float Ball

Steel Float Ball for Level Float Ball-50*245This product is different from the old model. The ball body of this product has been treated with full light, which means it does not have ring reinforcement. In order to increase the pressure resistance of the float ball, the old level gauge float ball has ring reinforcement on the ball body. In fact, it is incorrect to have ring reinforcement on the ball body. Wearing ring reinforcement does not increase pressure, but instead makes it easier for the float ball to sink on the ring reinforcement due to excessive pressure, making it unable to work better. After completing the integrated treatment, we reinforced the inside of the ball body to make it more resistant to pressure and more aesthetically pleasing.

Testing :

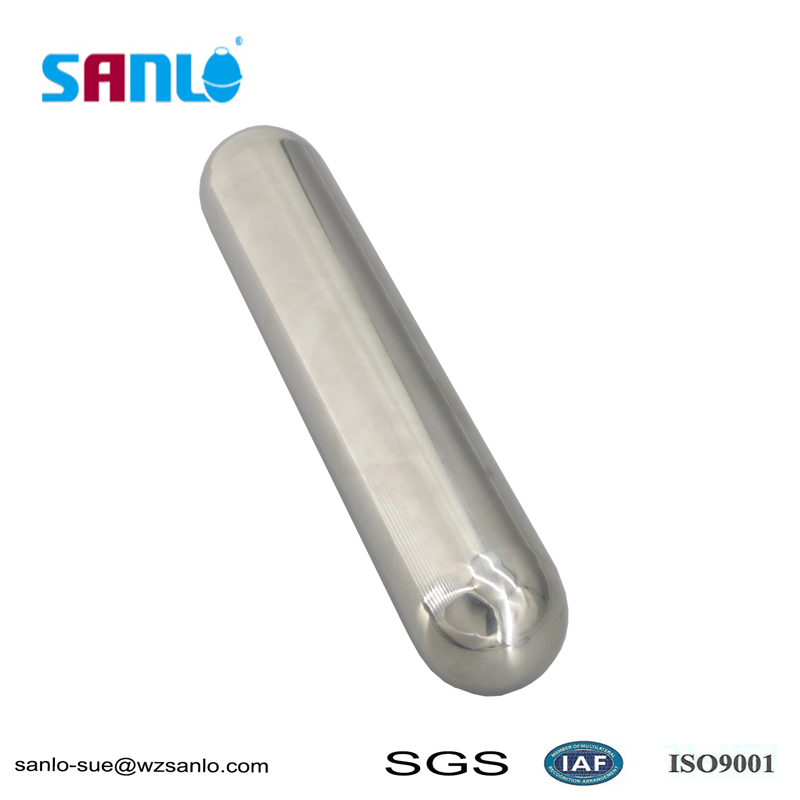

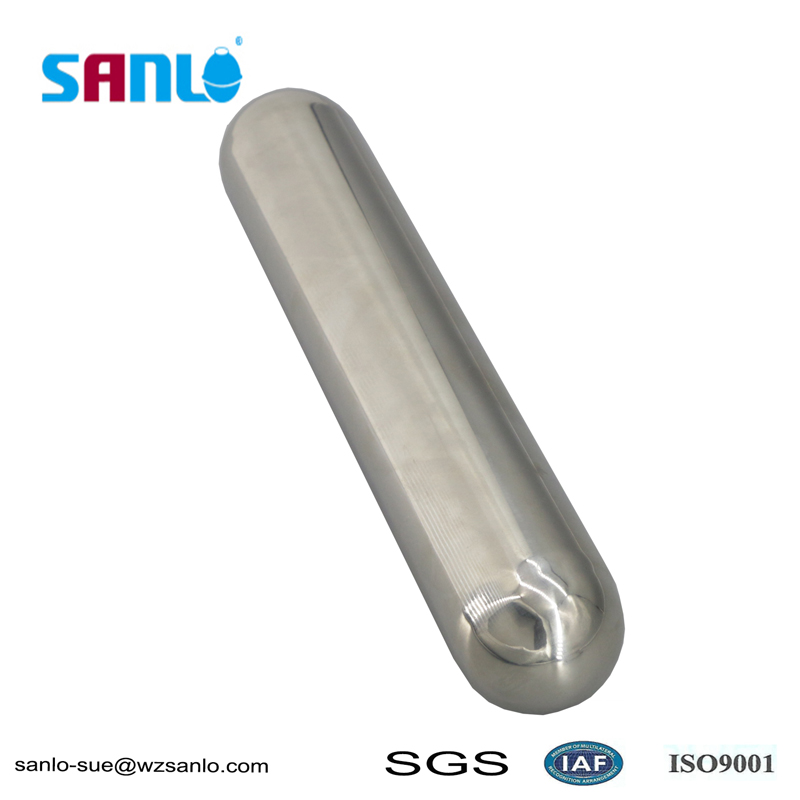

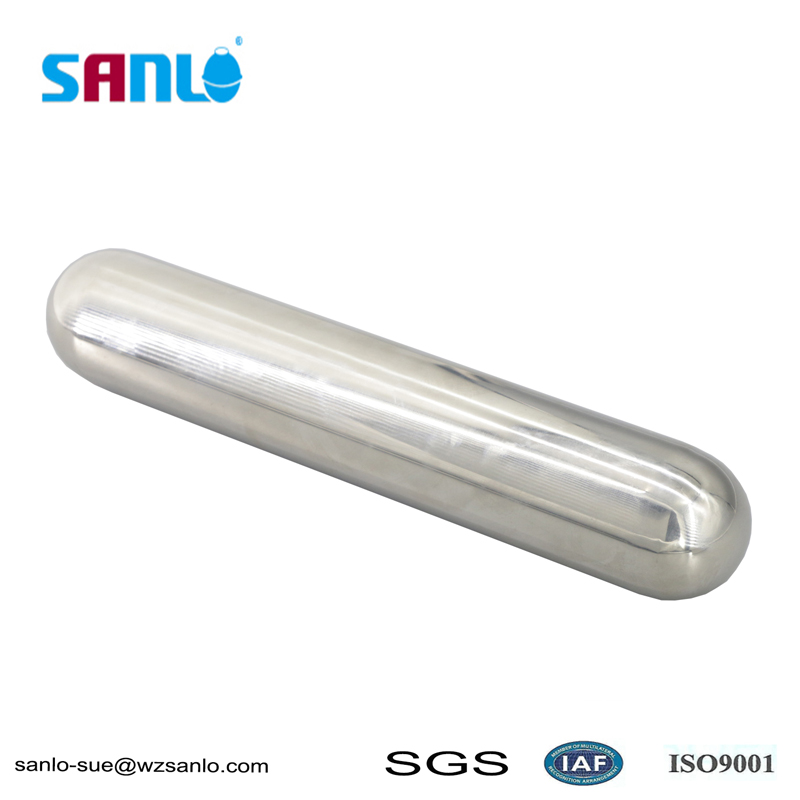

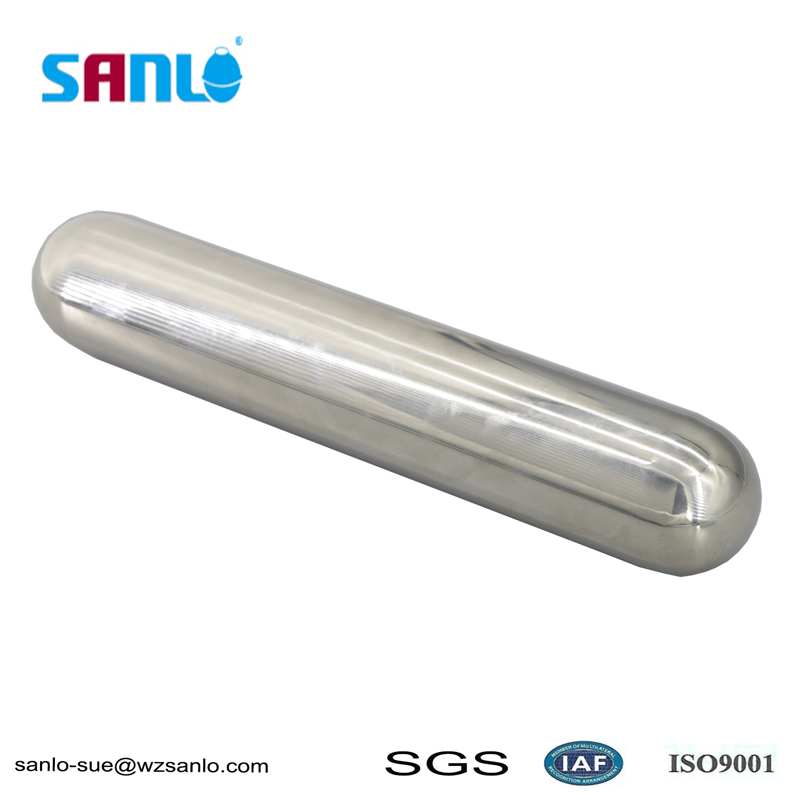

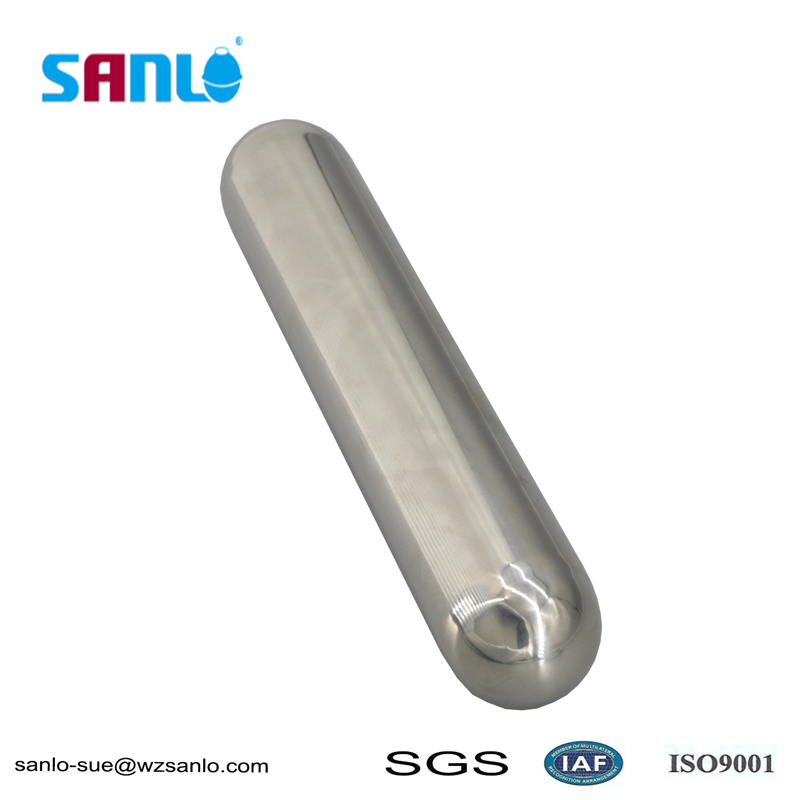

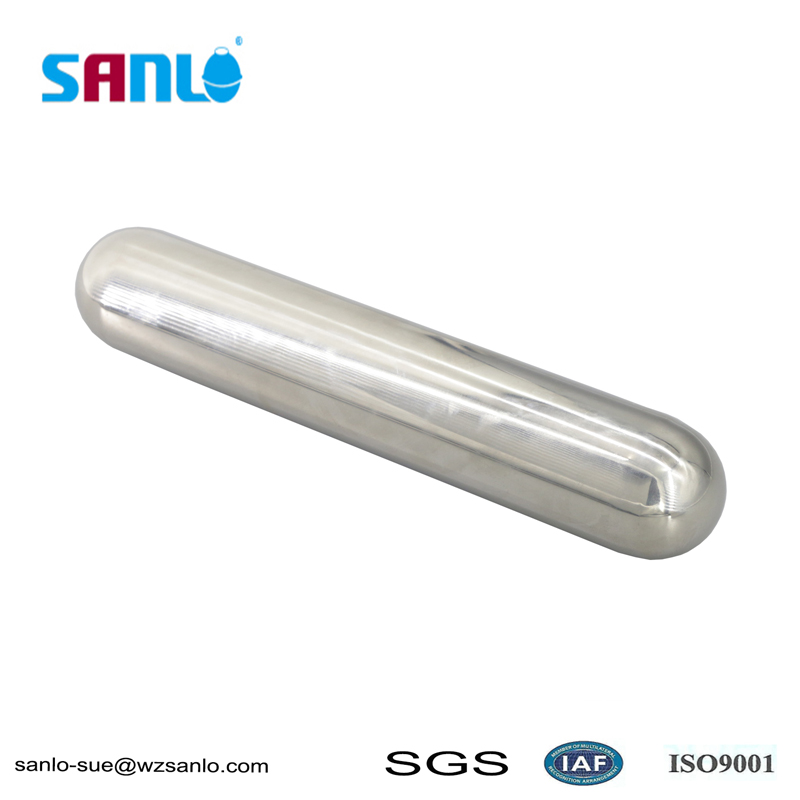

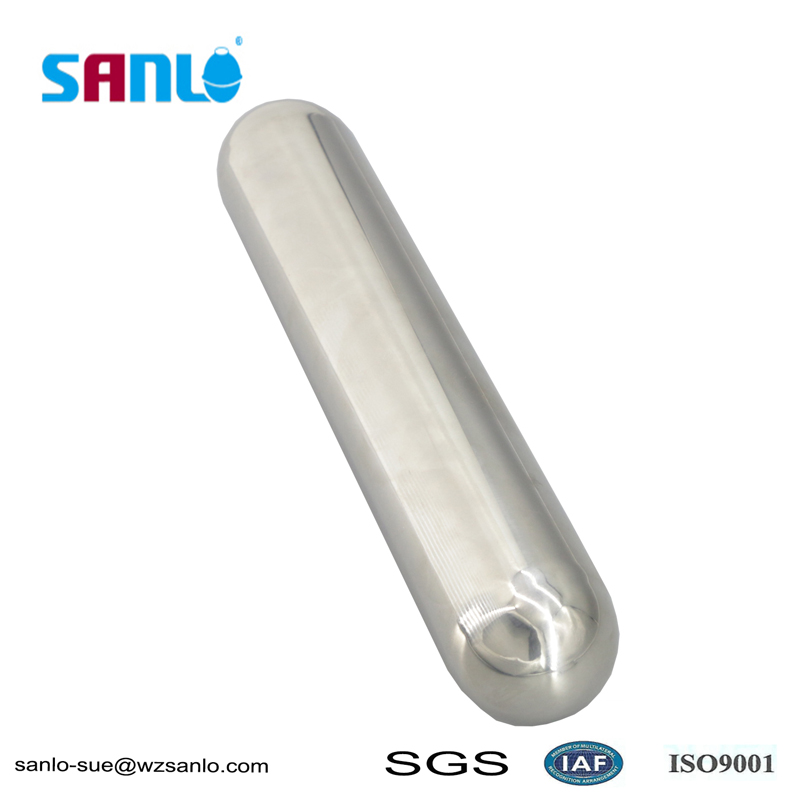

Physical photos：

Feature And Application of Steel Float Ball for Level Float Ball-50*245

Steel Float Ball for Level Float Ball-50*245 it is working in level switch /Level Gauge /Level Gauge magnetic flap .It helps the liquid level gauge achieve water level control balance. When the magnetic levitation ball floats up and down along the pipeline with changes in the liquid level, the magnetic steel inside the levitation ball attracts the reed tube at the corresponding position in the sensor, causing a change in the total resistance (or voltage) of the sensor. Then, the transmitter converts the changed resistance (or voltage) signal into a 4-20mA current signal output. Our XMT series digital control instrument (or DSB type optical column digital display instrument) can be selected to measure the liquid level remotely, and upper and lower limit alarms can be set on the display instrument to achieve positional control of the liquid level. Alternatively, other regulators can form a liquid level constant value adjustment system to achieve continuous PID adjustment of the liquid level.
