SUS316L Floating Ball

SUS316L Floating Ball-45*180This product is similar to the previous 50 * 210 level gauge float, with a smaller size and polished finish. The pressure is also produced according to customer requirements, and the appearance is more beautiful. In order to increase the pressure resistance of the float ball, the old level gauge float ball has ring reinforcement on the ball body. In fact, it is incorrect to have ring reinforcement on the ball body. Wearing ring reinforcement does not increase pressure, but instead makes it easier for the float ball to sink on the ring reinforcement due to excessive pressure, making it unable to work better. After completing the integrated treatment, we reinforced the inside of the ball body to make it more resistant to pressure and more aesthetically pleasing.

Production equipment：

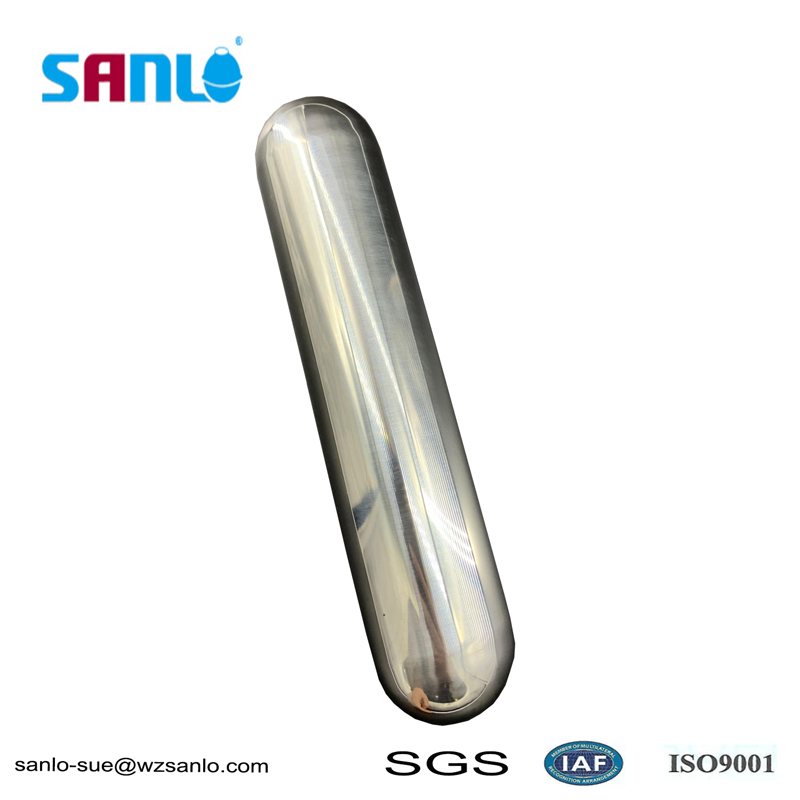

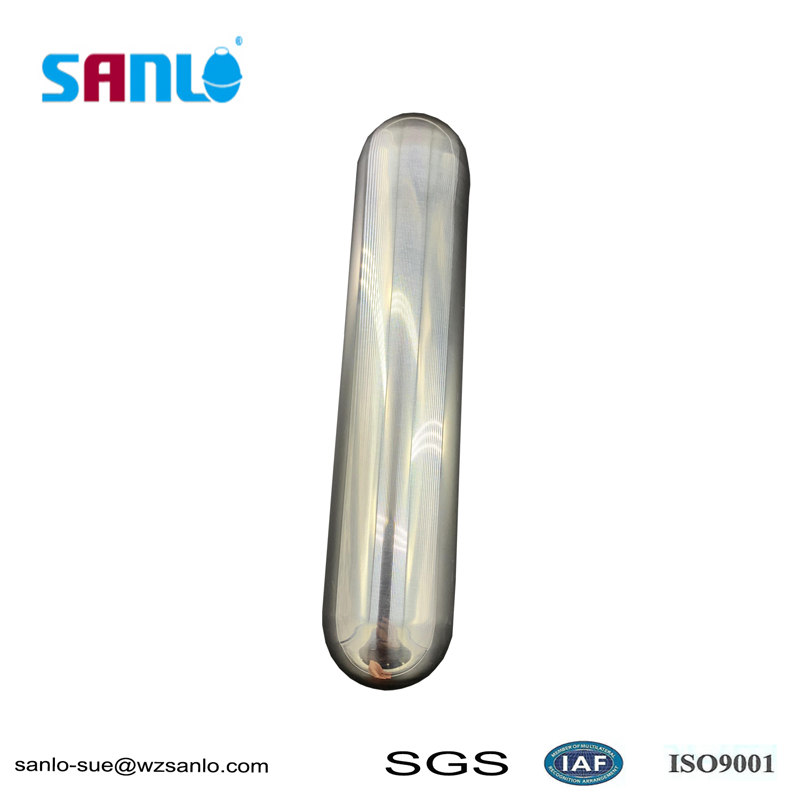

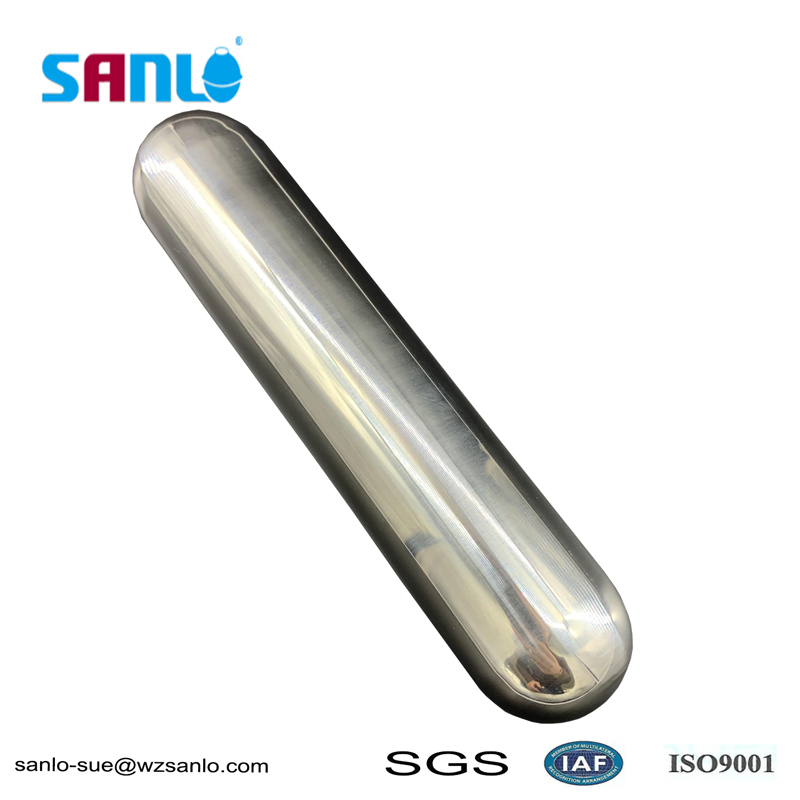

Physical photos：

Feature And Application of SUS316L Floating Ball-45*180

SUS316L Floating Ball-45*180 it is working in level switch /Level Gauge /Level Gauge magnetic flap .It helps the liquid level gauge achieve water level control balance. When the magnetic levitation ball floats up and down along the pipeline with changes in the liquid level, the magnetic steel inside the levitation ball attracts the reed tube at the corresponding position in the sensor, causing a change in the total resistance (or voltage) of the sensor. Then, the transmitter converts the changed resistance (or voltage) signal into a 4-20mA current signal output. Our XMT series digital control instrument (or DSB type optical column digital display instrument) can be selected to measure the liquid level remotely, and upper and lower limit alarms can be set on the display instrument to achieve positional control of the liquid level. Alternatively, other regulators can form a liquid level constant value adjustment system to achieve continuous PID adjustment of the liquid level.

The principle, characteristics, and application of float level gauge

1. Float level gauge

The structure of the float level gauge is mainly designed and produced based on the principles of buoyancy and static magnetic field. The position of a floating ball with a magnet in the measured medium is affected by buoyancy, and the change in liquid level leads to a change in the position of the magnetic float. The magnet and sensor (magnetic spring switch) in the floating ball act to change the number of components (such as fixed resistance) connected in series into the circuit, thereby changing the electrical quantity of the instrument circuit system. That is to say, the change in the position of the magnetic float causes a change in the electrical quantity. Reflect the liquid level inside the container by measuring changes in electrical quantities.

Float level gauges are almost suitable for liquid level measurement and control in various industrial automation process control, and are widely used for liquid level measurement, control and inspection in fields such as petroleum processing, food processing, chemical industry, water treatment, pharmaceuticals, power, papermaking, metallurgy, ships, and boilers. The wide application of float level gauges is inseparable from their following characteristics:

(1) The product has stable performance and long service life.

(2) Simple structure, easy to install, use, and maintain.
