Magnet Float Ball

Magnet float ball  ---45*56*18 ,This floating ball is customized for the customer, but on the basis of our original 45 * 56 * 15.5, the pipe has been replaced and the pipe has become larger. In addition, the magnet is larger than our regular one, which is also provided by the customer specifically. This float ball is used by customers on their own produced float ball level gauges, so this customized float ball is designed for customers.

Production equipment：

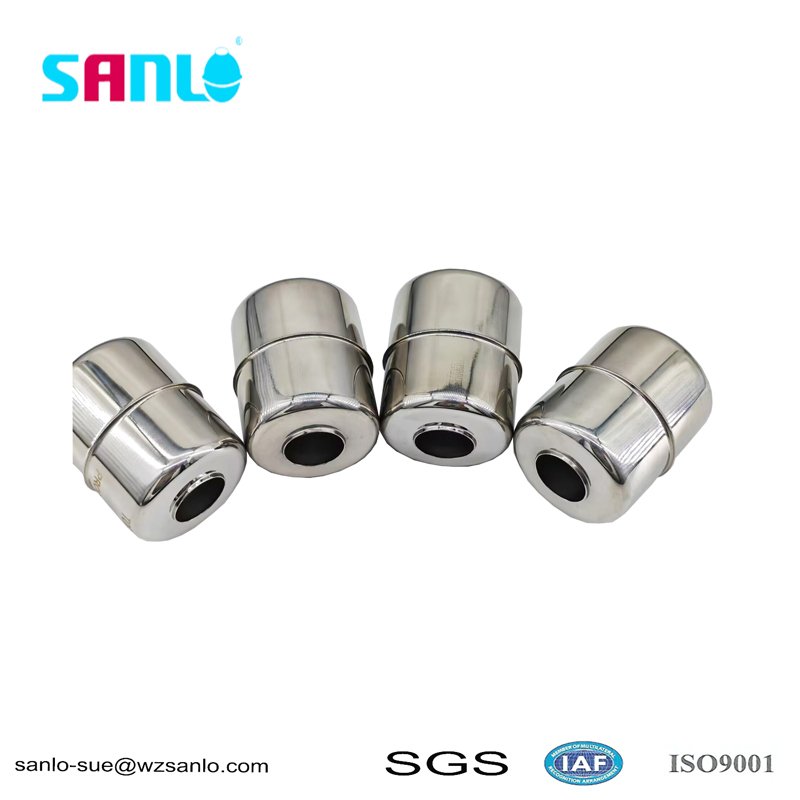

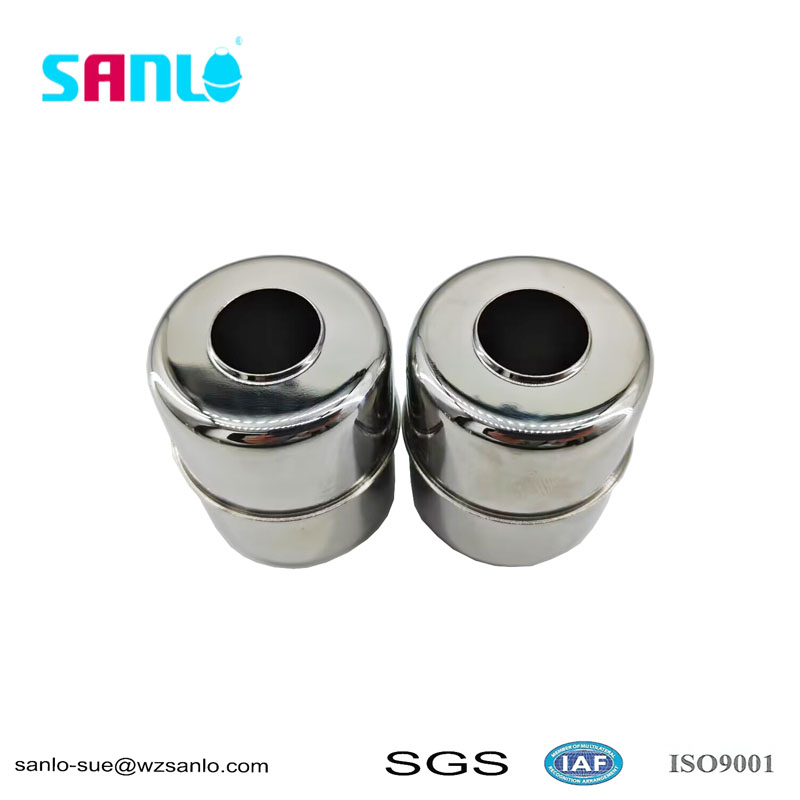

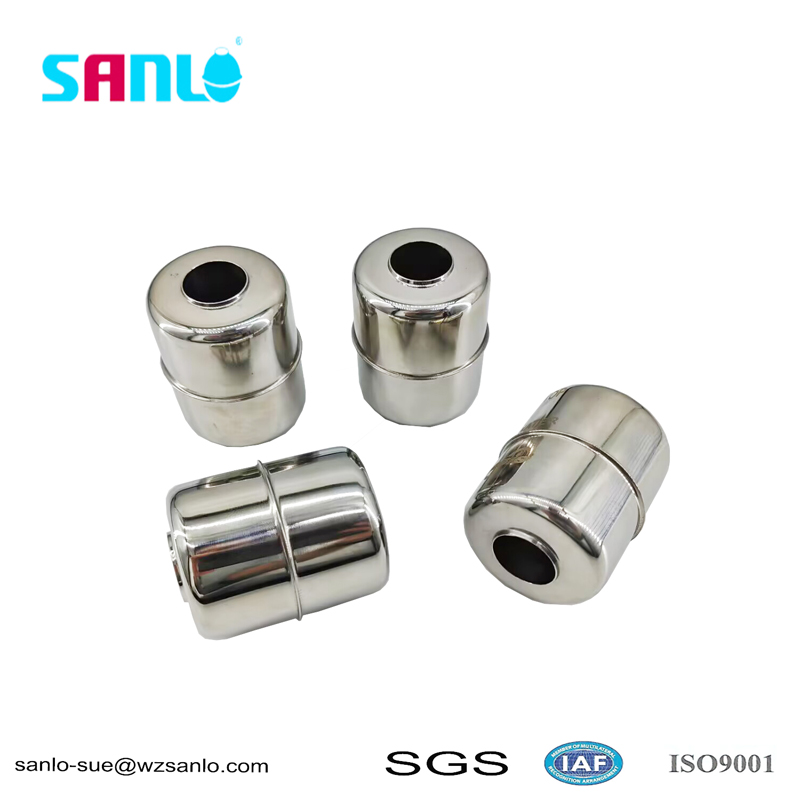

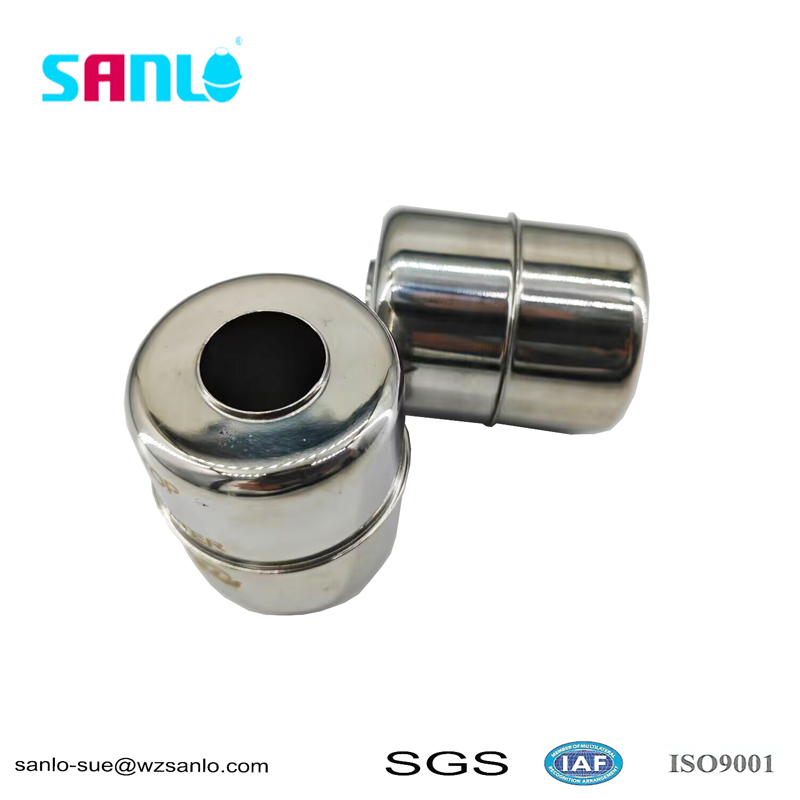

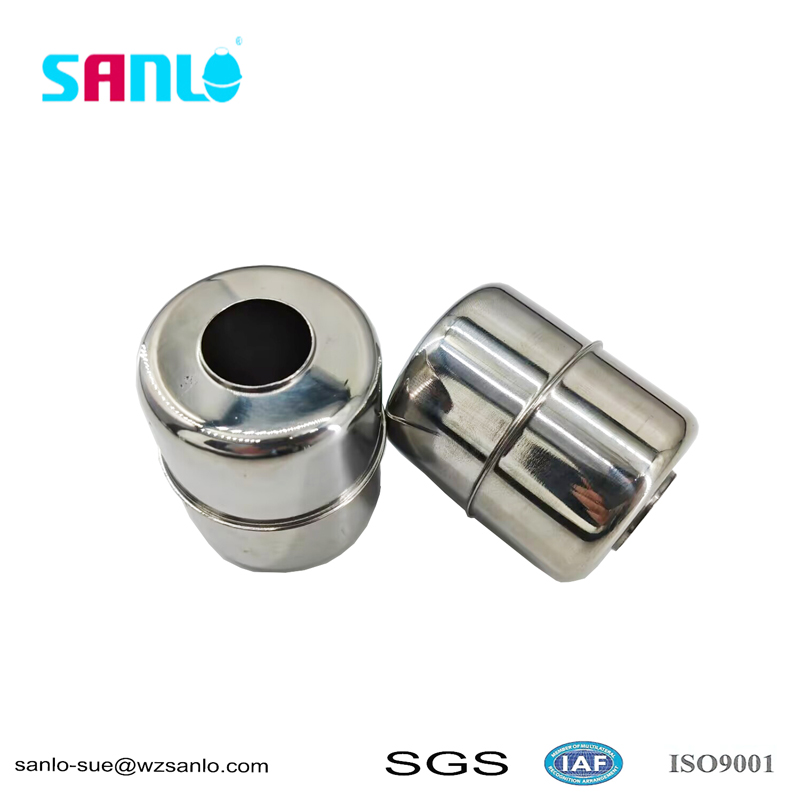

Physical photos：

Feature And Application of Magnet float ball ---45*56*18

Magnet float ball ---45*56*18 it is working in level switch /Level Gauge /Level Gauge magnetic flap .It helps the liquid level gauge achieve water level control balance. When the magnetic levitation ball floats up and down along the pipeline with changes in the liquid level, the magnetic steel inside the levitation ball attracts the reed tube at the corresponding position in the sensor, causing a change in the total resistance (or voltage) of the sensor. Then, the transmitter converts the changed resistance (or voltage) signal into a 4-20mA current signal output. Our XMT series digital control instrument (or DSB type optical column digital display instrument) can be selected to measure the liquid level remotely, and upper and lower limit alarms can be set on the display instrument to achieve positional control of the liquid level.
