Liquid Float Level Switch

Liquid Float Level Switch type A H&L has two types of pressure, one is high pressure and the other is low pressure. This one is low pressure. Our products usually have small quantities in stock, and are produced for large quantities with a lead time of approximately 5-7 days. Our materials are made of high-quality316L or 304, which are rust resistant, corrosion-resistant and high-temperature.Our threads are standard size threads, and the sealing gasket is thickened.

Parameter(Specification) of Liquid Float Level Switch type A H&L

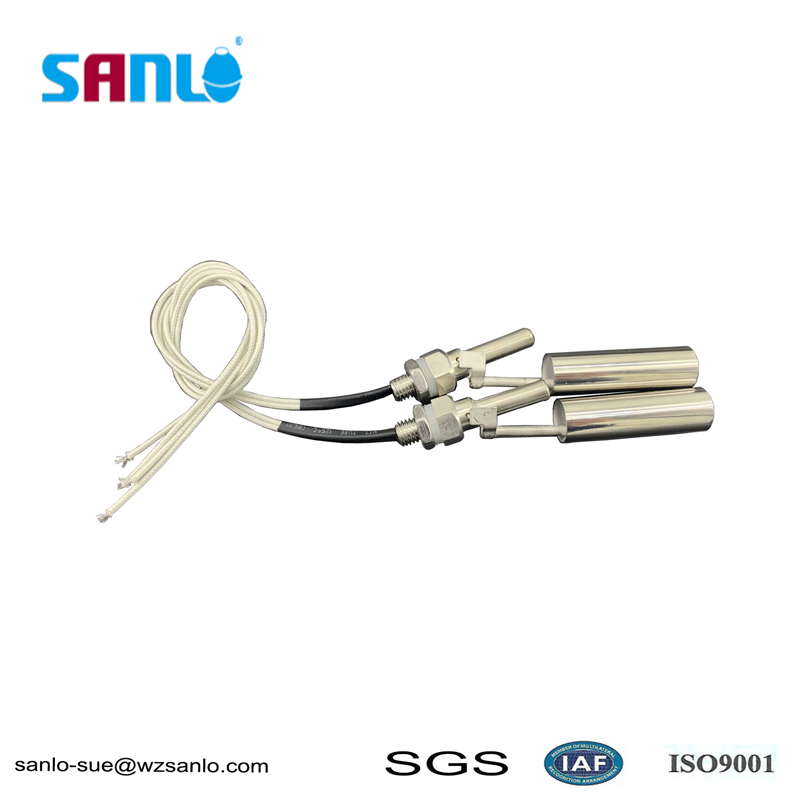

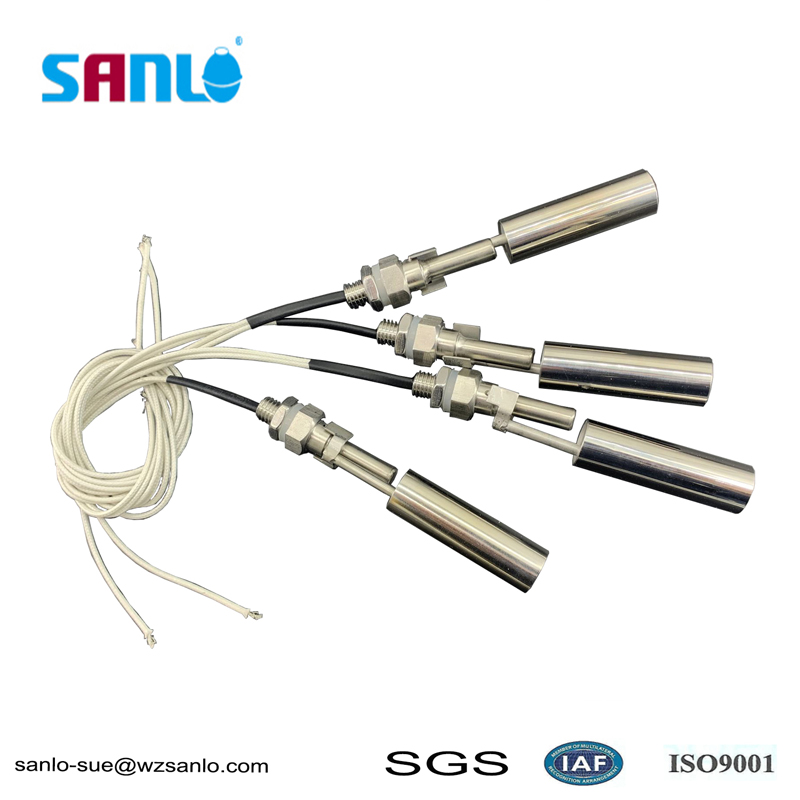

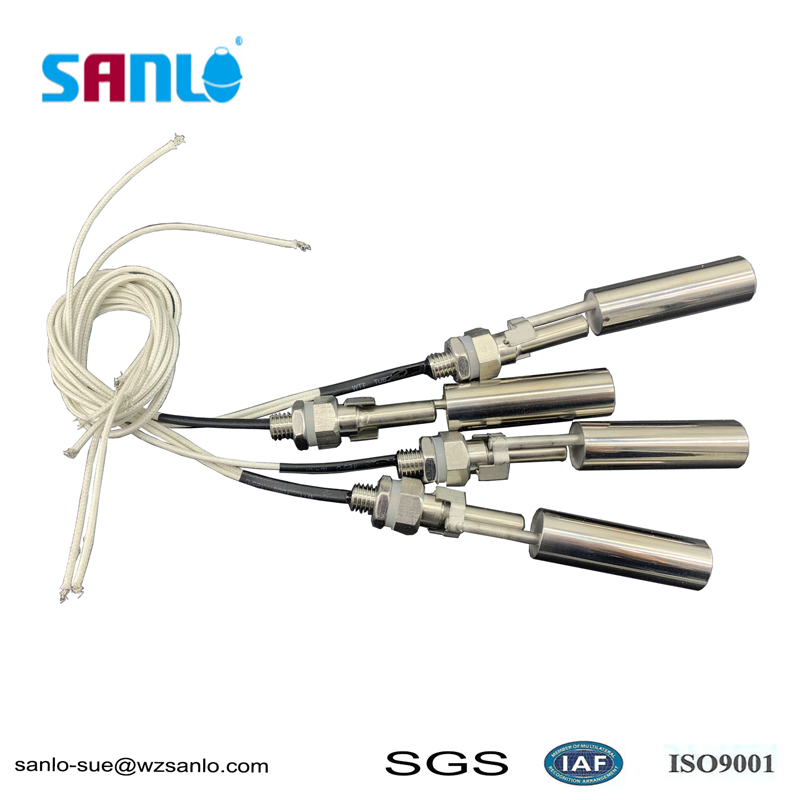

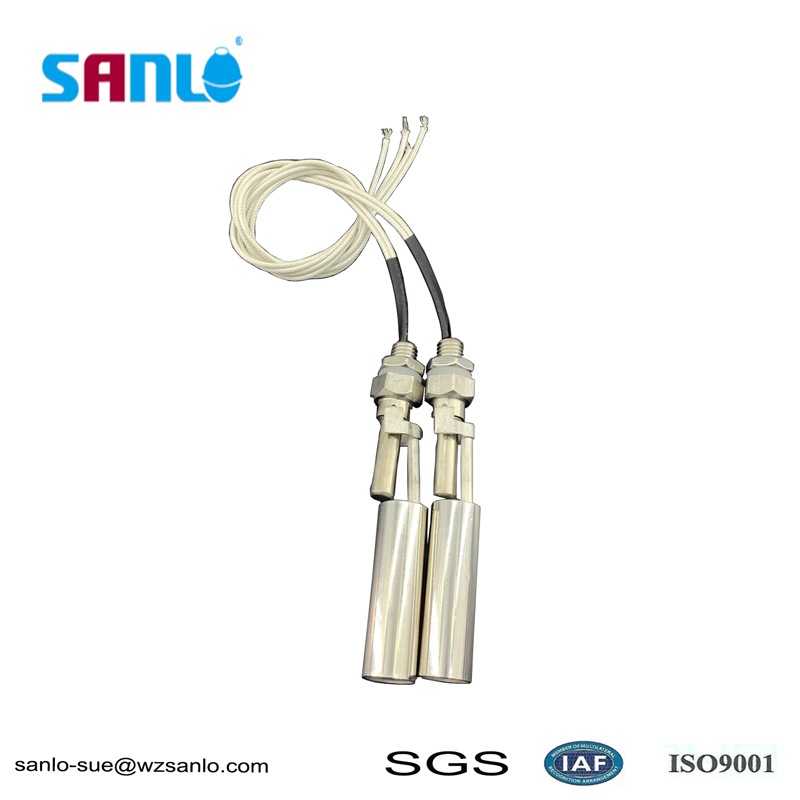

Physical photos：

Details of Liquid Float Level Switch type A H&L

A float switch typically consists of a float, one or more reed switches, and a magnet. When the liquid level changes, the float will move up and down, driving the internal magnet to move. This magnet further affects the switching status of the reed switch. The reed switch is a special type of switch that closes when the magnet approaches and opens when it leaves, thus achieving control over the circuit. Specifically, when the liquid level rises, the floating ball rises along with it, driving the magnet to move and closing or disconnecting the reed switch, achieving the opening or closing of the circuit; On the contrary, when the liquid level drops, the floating ball also controls the switch state of the reed switch through the magnet.
