Mounted Floating Ball 85*17 it is normal and Widely used type in the float ball industry . There have two types : one with hole .another one with Hooked , For this type we can do SUS304 and SUS316L both material . For SUS304 we have normal stock , but for Material 316L should be made from order . Normal delivery time for 316L need 15 days , for SUS304 only need 2-3days . our material show :
Material 316L
Parameter(Specification) of the Mounted Floating Ball 85*17
| DIMENSIONS | MATERIAL | PRESSURE | TEMP | S.G | MT | WEIGHT |
| 85*17 | SUS316L/SUS304 | 1.0MPA | -100--200 | >0.5 | 50±3 | 5.5±0.5 |

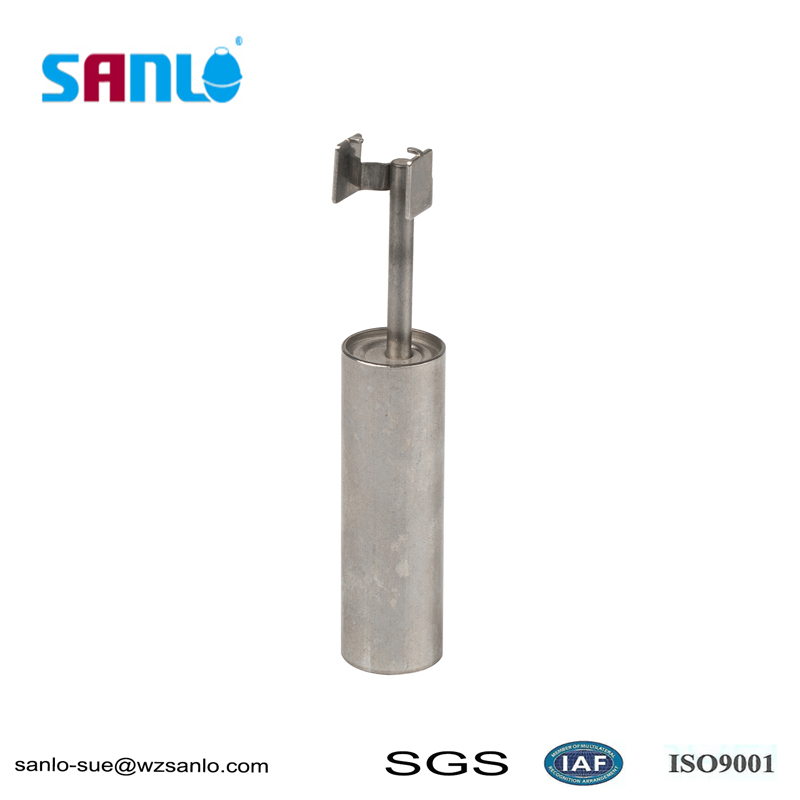

Physical photos：
Feature And Application of the Mounted Floating Ball 85*17
Mounted Floating Ball 85*17 it is working in float ball level switch / level gauge/level controller and level gauge magnetic flap Ect. Normal in the instrumentation industry. The float level gauge has the characteristics of simple structure, convenient debugging, good reliability, and high accuracy. Float level gauges can be widely used for continuous measurement of liquid levels (boundaries) in high temperature, high pressure, viscous, dirty media, asphalt, waxy and other oil products, as well as flammable, explosive, corrosive and other media.
