Float Ball for Level Switch 1inch (25*28*9.5) it is a little big one than 24*24*9.5 , it is use laser welding top and end , make sue best looking for shape and also we testing it with 3 strict projects , to make sue 100% no leakage before send the customer . The testing project : 1. with 100degree hot water for first welding . 2 Pressure testing with 8 hours . 3. Helium mass spectrometry detection testing one by one .
Product Parameter(Specification) of the Float Ball for Level Switch 1inch (25*28*9.5)
| DIMENSIONS | MATERIAL | PRESSURE | TEMP | S.G | MT | WEIGHT |
| 25*28*9.5 | SUS316L | 1.0MPA | -100--200 | >0.85 | 40±3 | 6±0.5 |

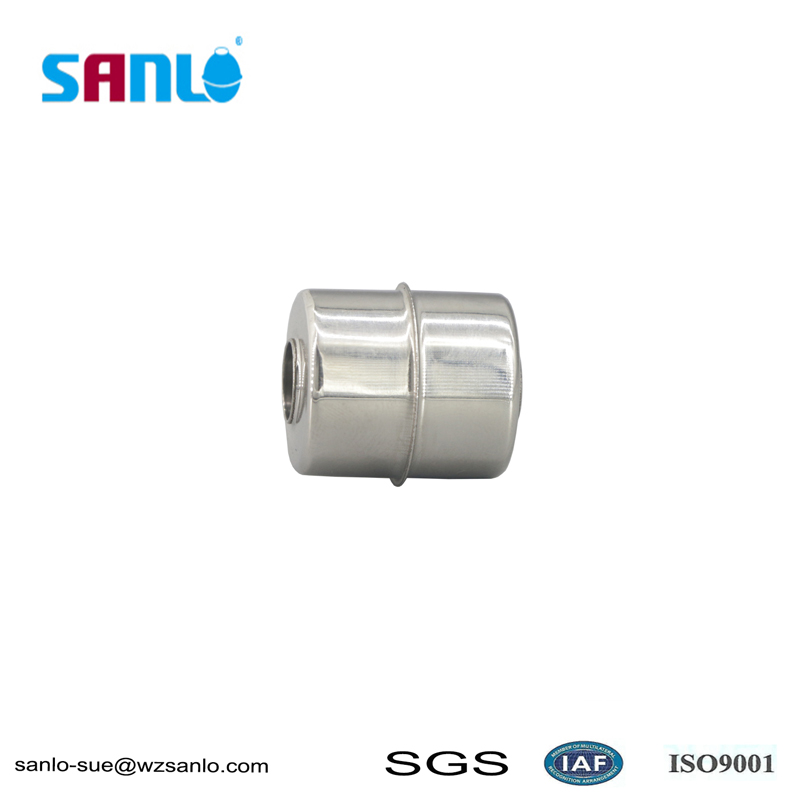

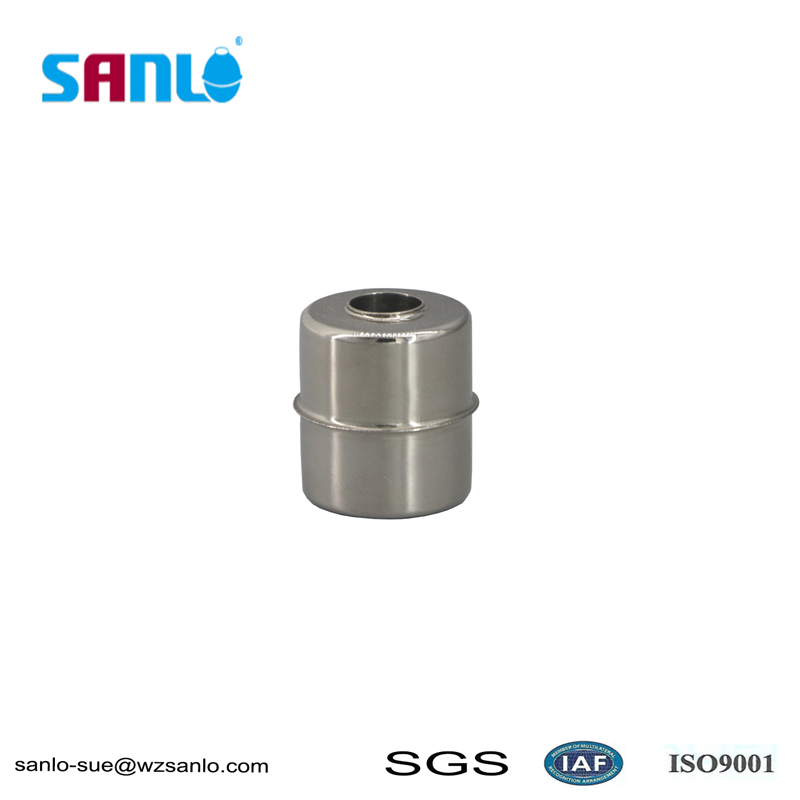

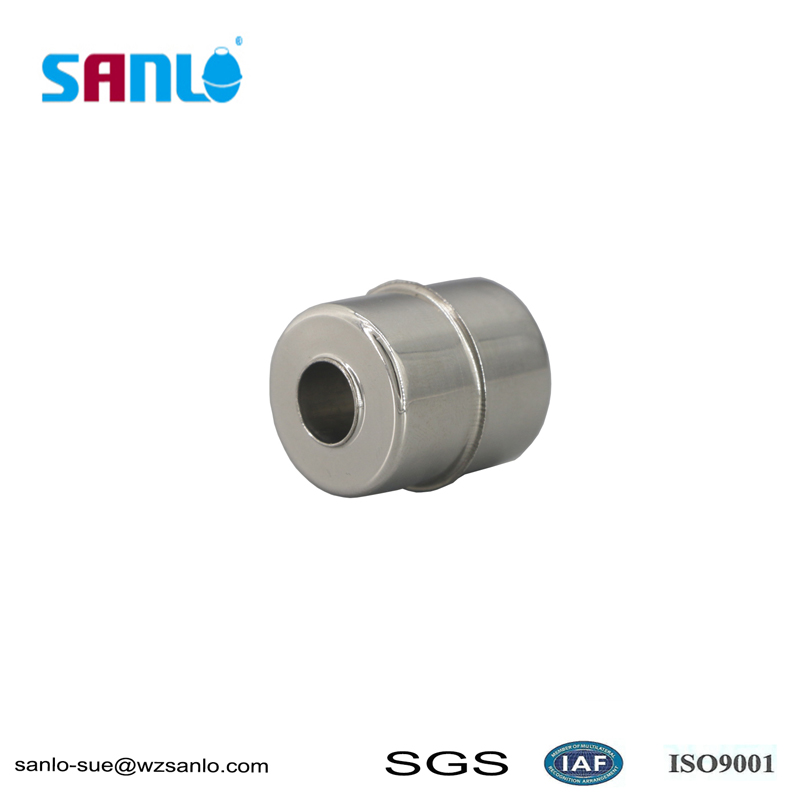

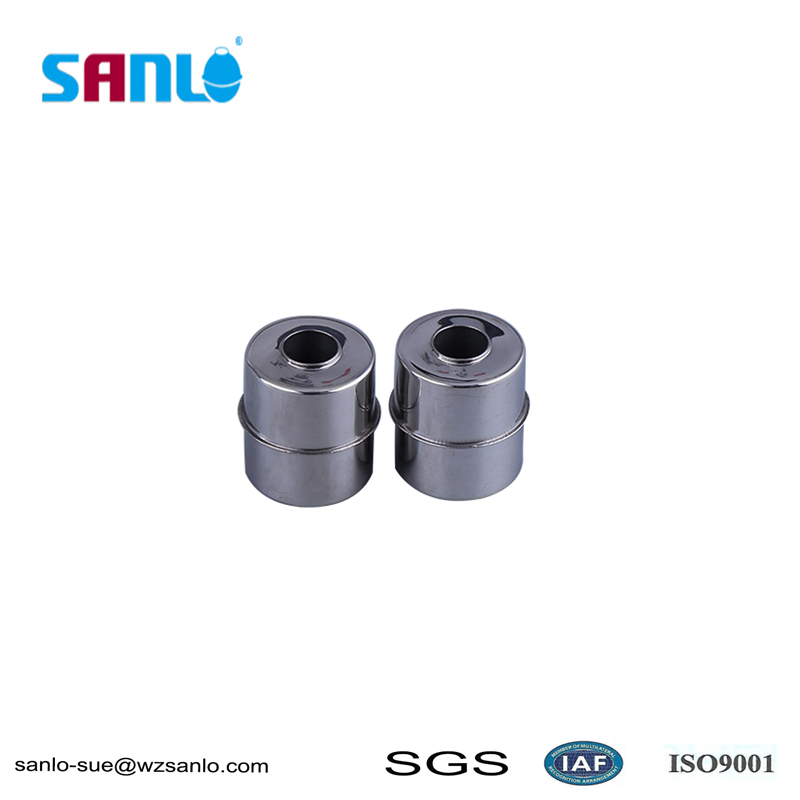

Physical photos：
Feature And Application of the Float Ball for Level Switch 1inch (25*28*9.5)
Float Ball for Level Switch 1inch (25*28*9.5) it is also working in level switch /Level Gauge /Level Gauge magnetic flap .It helps the liquid level gauge achieve water level control balance. When the magnetic levitation ball floats up and down along the pipeline with changes in the liquid level, the magnetic steel inside the levitation ball attracts the reed tube at the corresponding position in the sensor, causing a change in the total resistance (or voltage) of the sensor. Then, the transmitter converts the changed resistance (or voltage) signal into a 4-20mA current signal output. Our XMT series digital control instrument (or DSB type optical column digital display instrument) can be selected to measure the liquid level remotely, and upper and lower limit alarms can be set on the display instrument to achieve positional control of the liquid level. Alternatively, other regulators can form a liquid level constant value adjustment system to achieve continuous PID adjustment of the liquid level.
