Float Ball for Water Tank 125*23 it is normal and Widely used type in the float ball industry . This product is currently the largest among the conventional sizes of magnetic steel floating balls. We produce this floating ball according to customer orders and generally do not keep it in stock. The minimum order quantity is 500 pieces. This floating ball is usually used in large fuel storage tanks.
Parameter(Specification) of the Float Ball for Water Tank 125*23
| DIMENSIONS | MATERIAL | PRESSURE | TEMP | S.G | MT | WEIGHT |
| 125*23 | SUS316L | 2.5MPA | -100--200 | >0.5 | 60±5 | 315±5 |

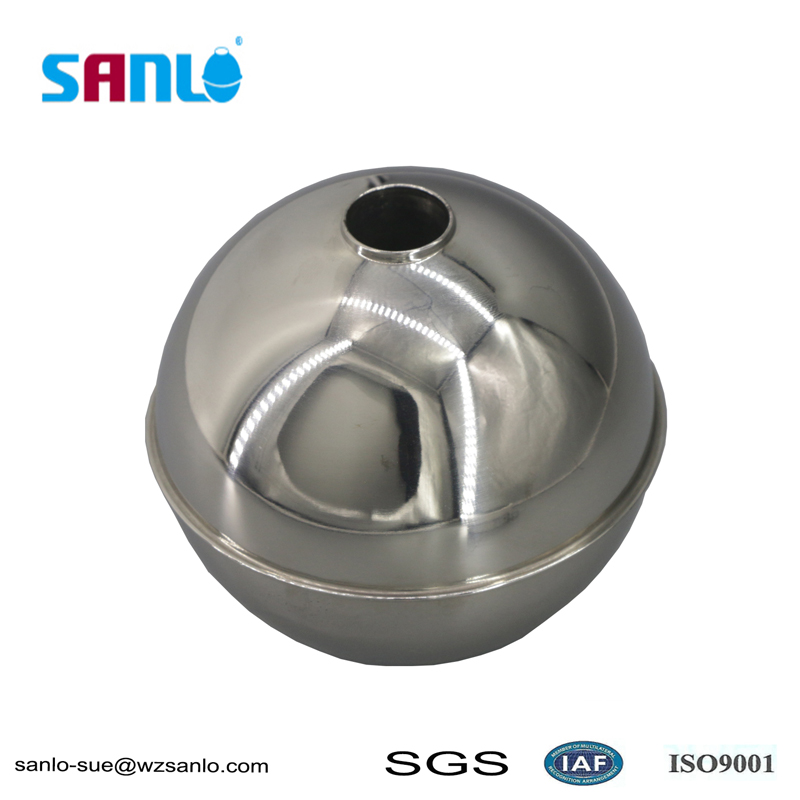

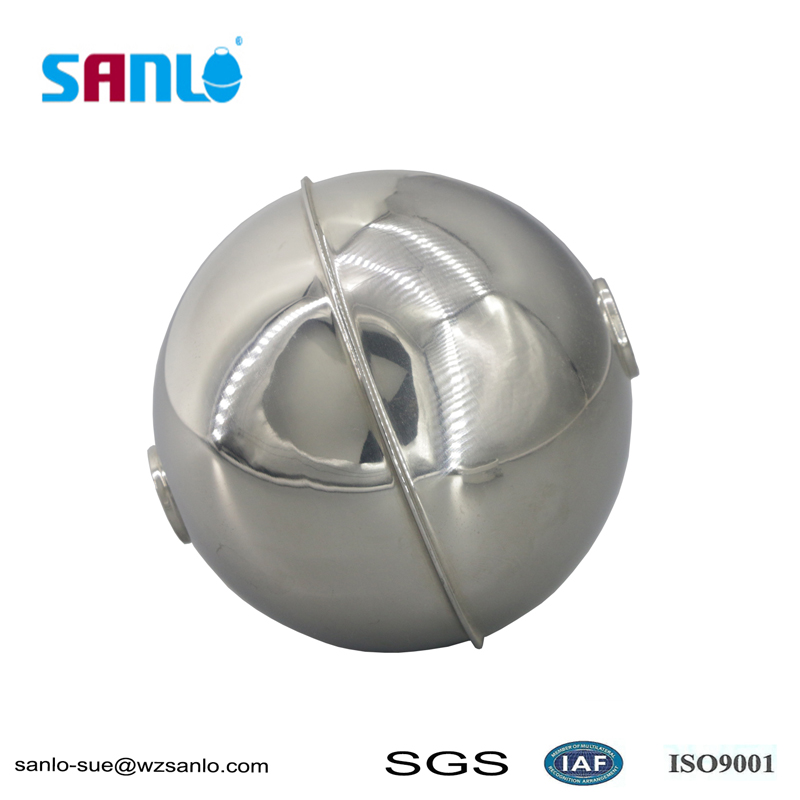

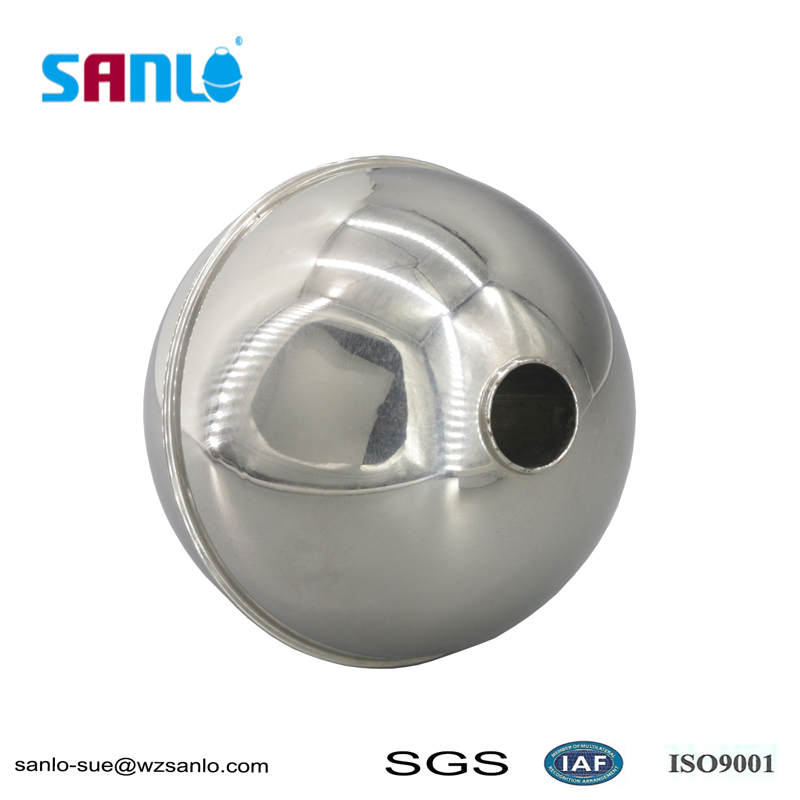

Physical photos：
Feature And Application of the Float Ball for Water Tank 125*23
Float Ball for Water Tank 125*23 it is working in float ball level switch / level gauge/level controller and level gauge magnetic flap Ect. Normal in the instrumentation industry. Like water /gasoline/diesel oil and other mediums. Stainless steel float is a spherical object that can float autonomously on the surface of a liquid, usually made of stainless steel material. The principle of stainless steel float is very simple, based on Archimedes' law, which means that the buoyancy of an object in a liquid is equal to the weight of the displaced liquid. When a floating ball floats on the water surface, its buoyancy is balanced with gravity and maintained in a stable position. If the water level rises, the float will rise accordingly. If the water level drops, the float will also follow suit.
